| Frame |
6061 Aluminum Floval Tubing, Mid-Drive Motor, Removeable Internal Battery, Internally-machined Tapered Integrated Head Tube, Looptail Rear End w/ 12x148mm Closed Dropouts, Disc Brake Tabs, Water Bottle Mounts |
| Fork |
Mega Landing Gear, Full Cr-Mo, Tapered Steerer Tube, 445mm Axle to Crown, 39mm Offset, 110mm Spaced Dropouts, Disc Tabs |
| Crankset |
Bafang aluminum, 170mm, 32T Alloy Chainring |
| Pedals |
X-Pedo Low-profile Platform w/ Removable Pins |
| Rear Derailleur |
Shimano CUES U6020 |
| Shifters |
Shimano CUES U6000, 1 x 10-speed |
| Chain |
Shimano LG500 |
| Wheelset |
Alloy 36H Nutted Sealed Front Hub, Thru-Axle Sealed Rear Hub, 110mm Front Hub & 148mm Rear Hub, w/ 36mm Double-Wall Disc Rims, Shimano LG-300, 11-39T, Cassette, Stainless Spokes |
| Tires |
Vee Tire Co x SE Racing Speedster, MPC Durable Compound, 29" x 2.8" Front & Rear |

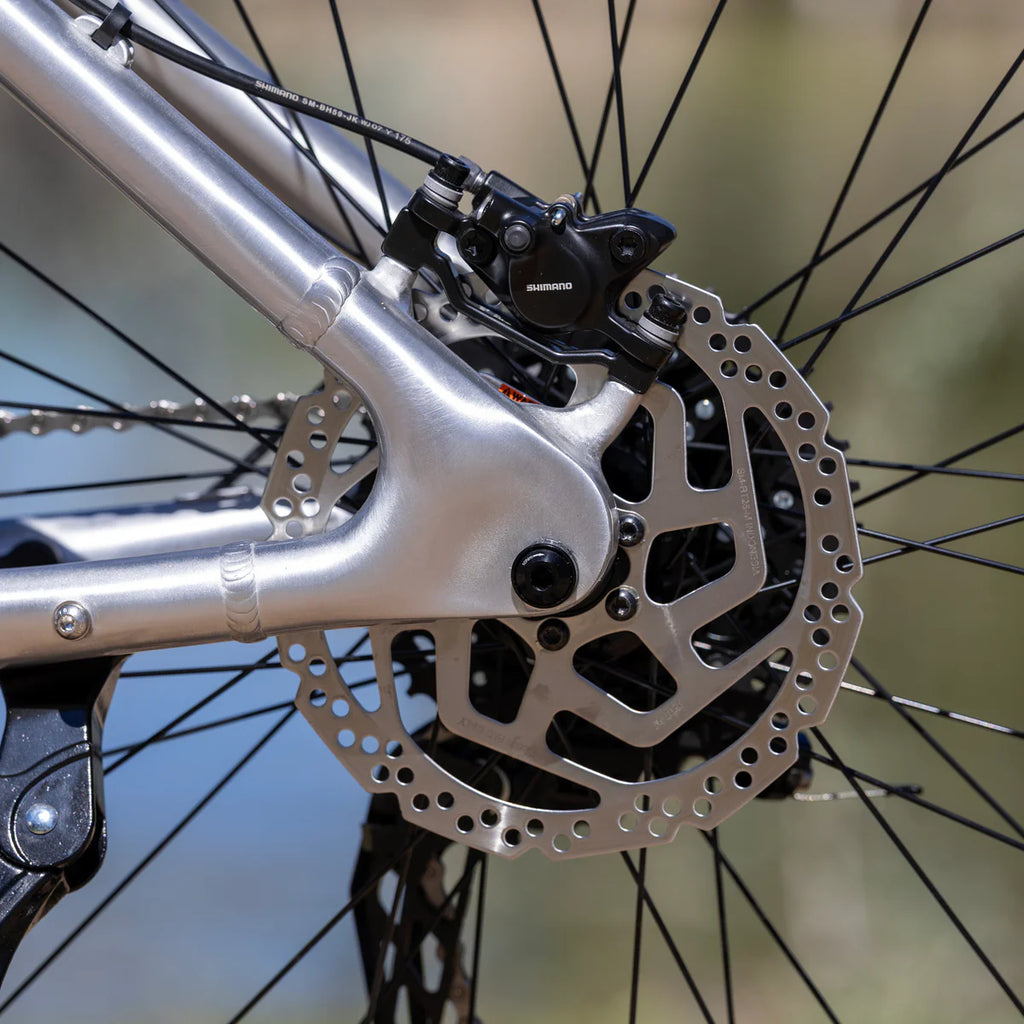

| Brakeset |
Shimano MT200, Hydraulic Disc, 180mm rotors |
| Brake Levers |
Shimano MT200 |
| Headset |
Neco, Sealed 1-1/8"-1.5" Tapered, Integrated Headset |
| Handlebar |
Big Honkin' Cr-Mo Cruiser Bar, 30" x 8.25", 12° Backsweep, 1° Upsweep |
| Stem |
SE Retro Alloy Top-Load, 55mm Reach |
| Grips |
SE Racing Mushroom Wing Grips w/ SE Rubber End Plugs |
| Seat |
Mega Flyer Seat w/ Custom SE Bottle Opener Brace |
| Seatpost |
Micro-Adjust Alloy, 31.6mm |

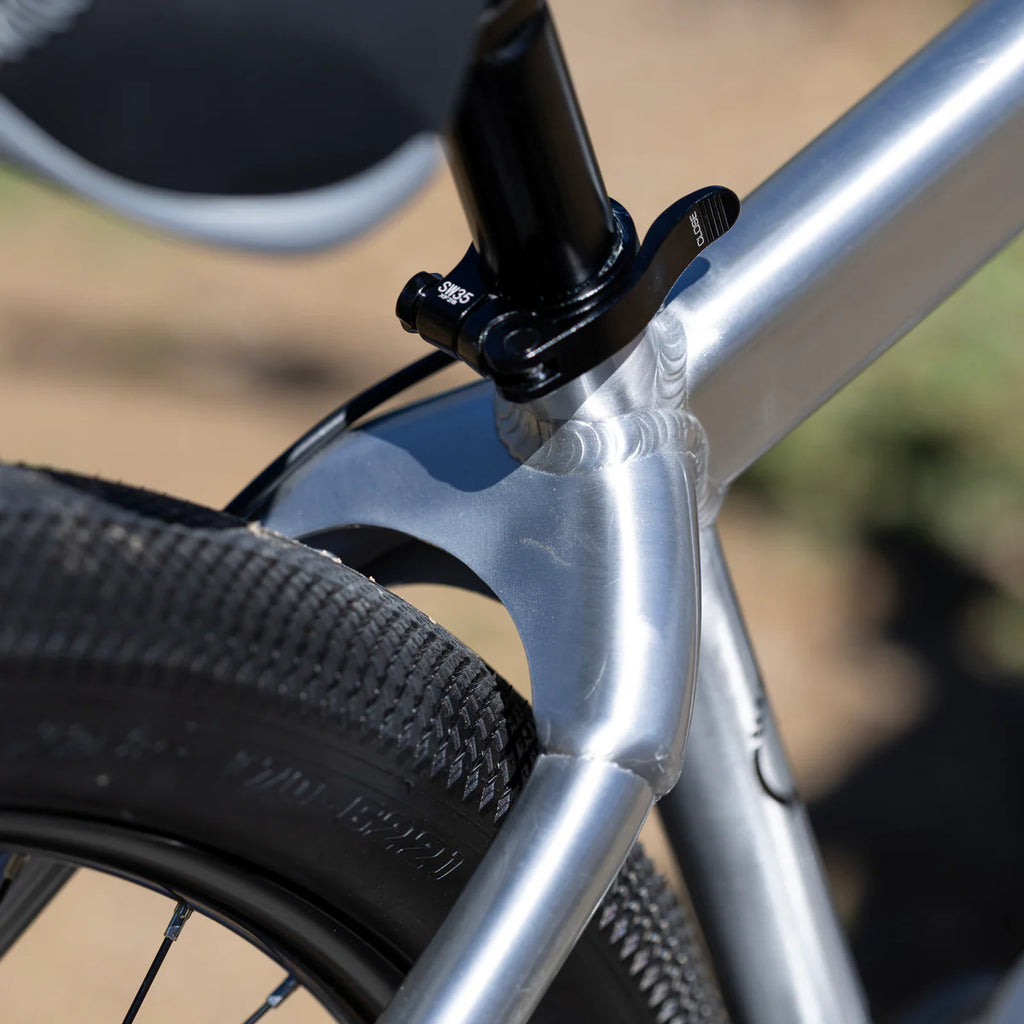

| Seat Clamp |
Quick Release Seat Clamp, Alloy, 35mm Inner Diameter |
| Accessories |
Alloy Valve Caps, Water Bottle Mounts |
| Wheel Size |
29" |

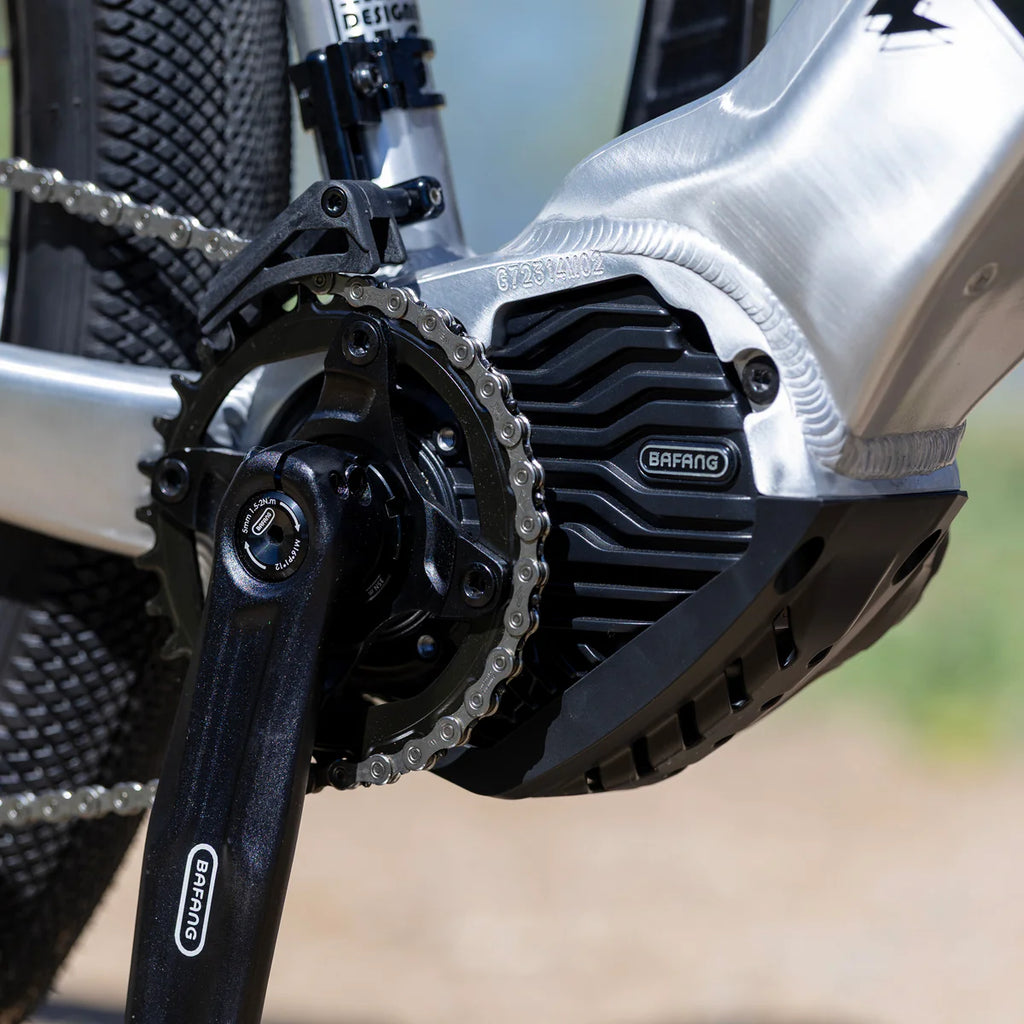

| Motor |
Bafang M560, 500W Mid Drive, 950W Peak Power, 48V, 140Nm Torque, 28mph |
| Battery |
Bafang internal, 48V, 15Ah, 720Wh |

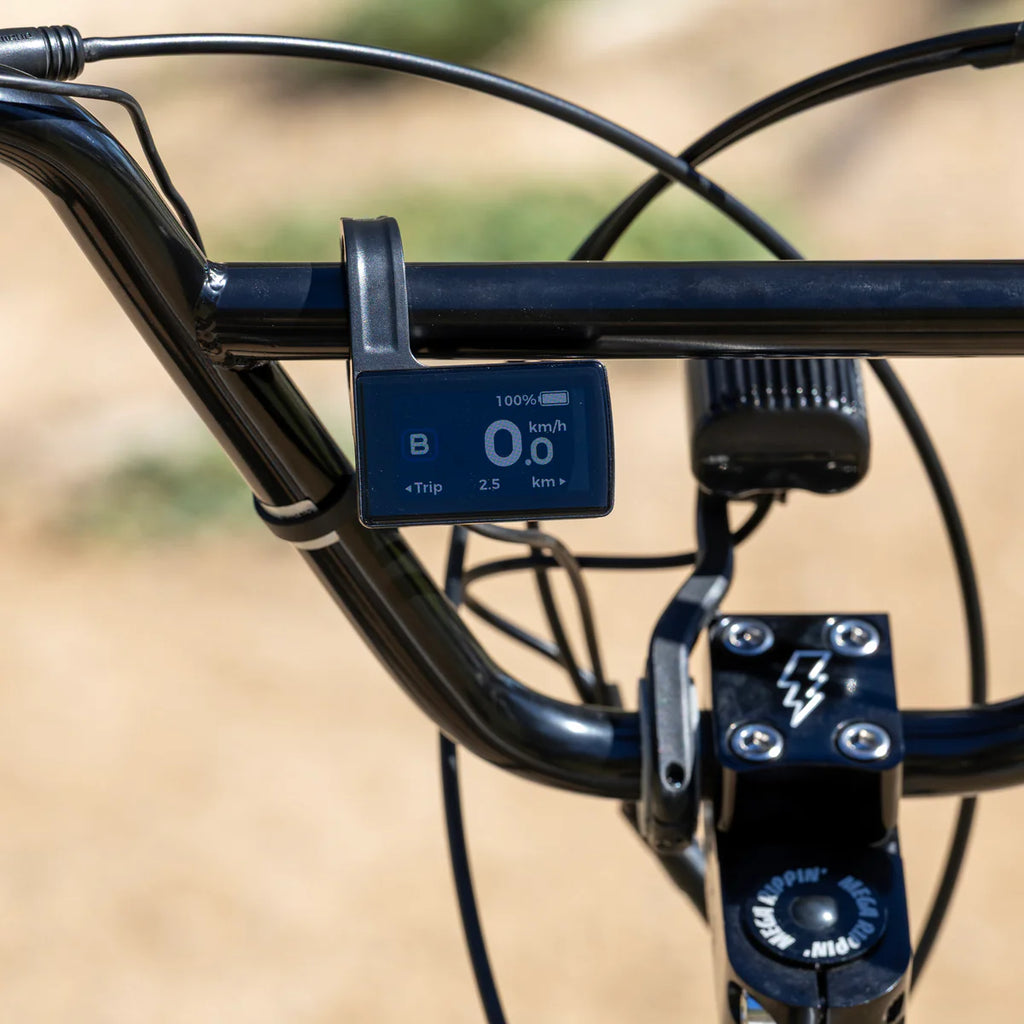

| Display |
Bafang DP C245, TFT LCD, 4 modes, Walk Assist, Remote, USB C Charging, Bluetooth 5.0 |
| Battery Charger |
Bafang , 54.6V, 2A |
| Weight |
TBD |
| Headlight |
Lezyne StZVO E300, LED, 300 Lumens, 100 Lux, 6-12V, Water Resistant |
| Rear Light |
Trelock LS 740 I-GO Vector, 20 Lux, 500 Meter Visibiity, Brake Light Function |
| Range |
Up to 50 miles |
| Charge Time |
4 hours |
| Maximum Permissible Weight |
300 lbs Including Rider, Bicycle, and Extra Baggage |
| Certifications / Use Condition |
Class 3 E-Bike, Use Condition 3, UL2849 Compliant |
