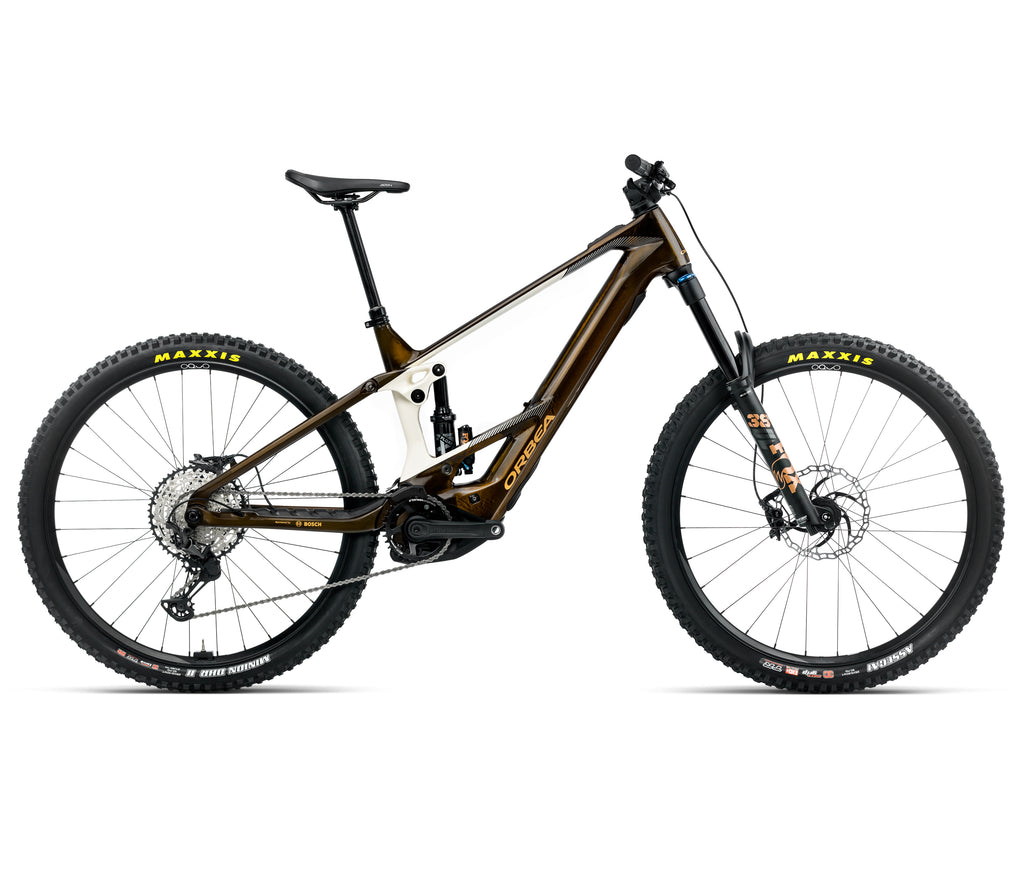

The Orbea Wild M20 20MPH E-Bike is a lightweight, full-power eMTB, developed in the highest levels of competition, and ready to take on whatever challenge you have in mind. The OMR carbon fiber frame has slacker geometry for more aggressive descending and totally new, race-bred kinematics with 170mm of travel on the front and rear and large 29" tires for stability. The frame also features internal cable routing, integrated frame and chain stay protection, Boost hub spacing, a water bottle cage mount, and a chain guide. With the Bosch Performance Line CX BDU3840 drive unit and Bosch Powertube 750Wh battery, you'll get up to 20mph of pedaling assist so you can conquer all your rides.
The M20 version of the Orbea Wild comes with a Shimano Deore/SLX 12-speed drivetrain. With an ultra-wide 10-51T cassette on the rear, you'll have no issue climbing or pedaling through demanding terrain. Shimano MT46120 hydraulic disc brakes provide excellent stopping power so you can descend with confidence. Race Face AR 30c rims are paired with Maxxis Minion tires that can be set up tubeless for a smoother ride, better traction, and fewer flats. With the OC Mountain Control MC22 Dropper Post, you'll be able to lift and lower your saddle with the press of a lever.
Features
- OMR carbon fiber frame with internal cable routing, integrated frame and chain stay protection, Boost hub spacing, a water bottle cage mount, and a chain guide
- Shimano Deore/SLX 12-speed drivetrain performs well in all riding conditions
- Shimano MT6120 hydraulic disc brakes provide excellent stopping power
- Tubeless-ready rims and tires for a smoother ride, better traction, and fewer flats
- OC Mountain Control MC22 Dropper Post quickly lifts and lowers your saddle with the press of a lever
- Bosch Performance Line CX BDU3840 Motor with a Bosch Powertube 750Wh Battery
| Frame | OMR Carbon Fiber, Concentric Boost 12x148 |
|---|---|
| Fork | FOX 38 Performance 170mm |
| Rear Shock | Fox Float X Performance Trunnion 2-Pos EVOL LV, 205x65mm |
| Headset | Alloy 1-1/2" Black Oxidated Bearing |
| Shifters | Shimano Deore M6100 I-Spec EV, 12-Speed |
| Front Derailleur | Nope |
| Rear Derailleur | Shimano SLX M7100 SGS Shadow Plus |
| Crankset | E*Thirteen Plus Alloy, 34T |
| Bottom Bracket | - |
| Chain | Shimano M6100, 12-Speed |
| Cassette | Shimano CS-M7100, 10-51T |
| Brakes | Shimano MT6120 Hydraulic Disc |
| Wheelset | Race Face AR 30c Tubeless Ready |
| Tires | Maxxis Minion 29x2.4" 120 TPI 3CT/DD/TR MaxxTerra |
| Handlebar | OC Mountain Control MC30, 20mm Rise, 800mm Wide |
| Stem | OC Mountain Control MC20, 0° Rise |
| Grips/Bar Tape | OC Lock-On |
| Seatpost | OC Mountain Control MC22, 31.6mm, S:150, M:170, L/XL:200mm |
| Seatclamp | Bolt-Type |
| Saddle | Fizik Aidon 208x145mm Manganese Rails |
| Intended Use | Enduro, All-Mountain |
| Motor | Bosch Performance Line CX BDU3840 |
| Battery | Bosch Powertube 750Wh Horizontal BBP3770 |
| Display | Bosch System Controller BRC3100 |
Note: Components are subject to change without notice.
| Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A: Seat Tube Length | 415 | 415 | 435 | 460 |
| B: Effective Top Tube | 553 | 585 | 612 | 638 |
| C: Stack | 625 | 634 | 643 | 652 |
| D: Reach | 435 | 455 | 480 | 505 |
| E: BB Height | 358 | 358 | 358 | 358 |
| F: BB Drop | 22 | 22 | 22 | 22 |
| G: Head Tube Length | 110 | 120 | 130 | 140 |
| H: Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| I: Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| J: Standover Height | 730 | 730 | 730 | 730 |
| K: Chainstay Length | 448 | 448 | 448 | 448 |
| L: Wheelbase | 1227 | 1252 | 1281 | 1310 |
| Crank Arm Length | 160 mm | 160 mm | 160 mm | 160 mm |
| Stem Length | 35 mm | 40 mm | 40 mm | 50 mm |
| Handlebar Width | 800 mm | 800 mm | 800 mm | 800 mm |
| Frame Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| Rider Height | 59.1" - 68.9" 150 - 175 cm |
63" - 72.8" 160 - 185 cm |
66.9" - 76.8" 170 - 195 cm |
70.9" - 80.7" 180 - 205 cm |
