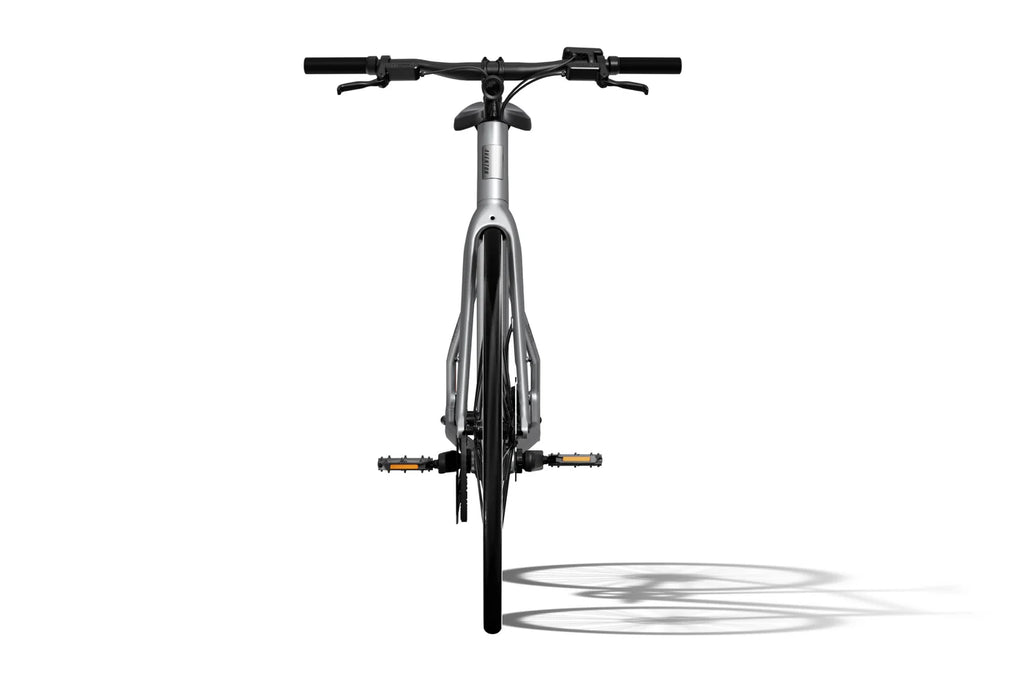

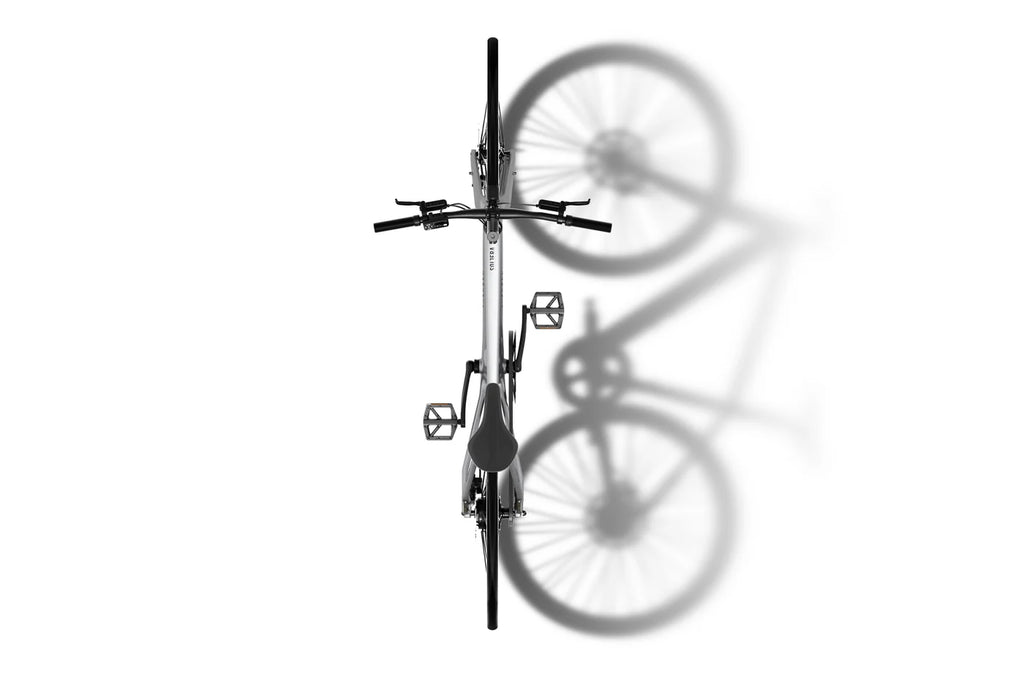

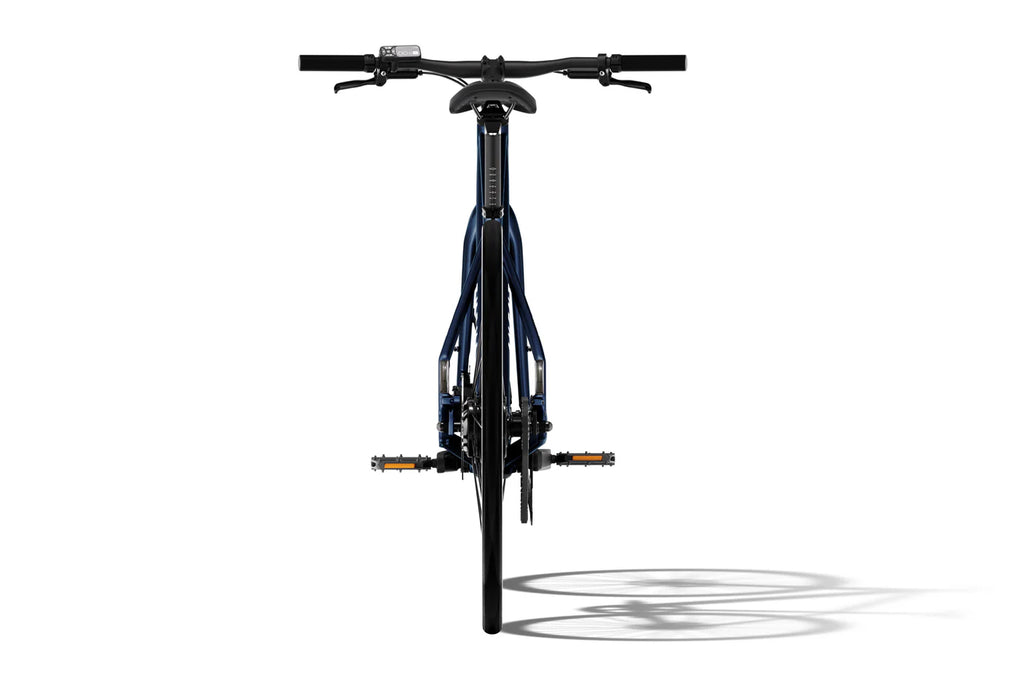

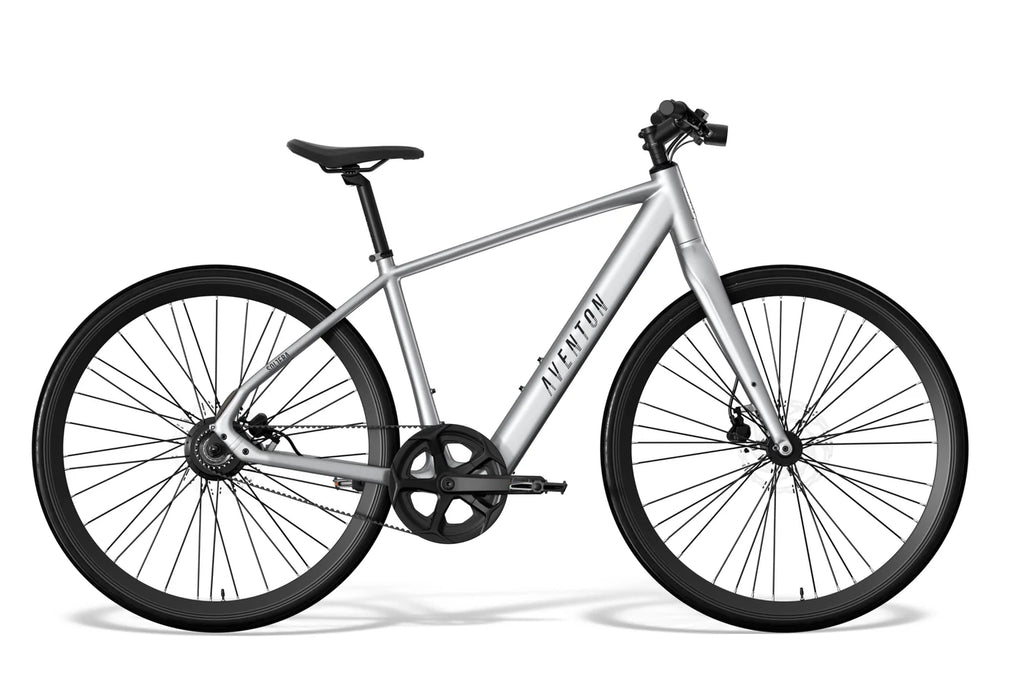

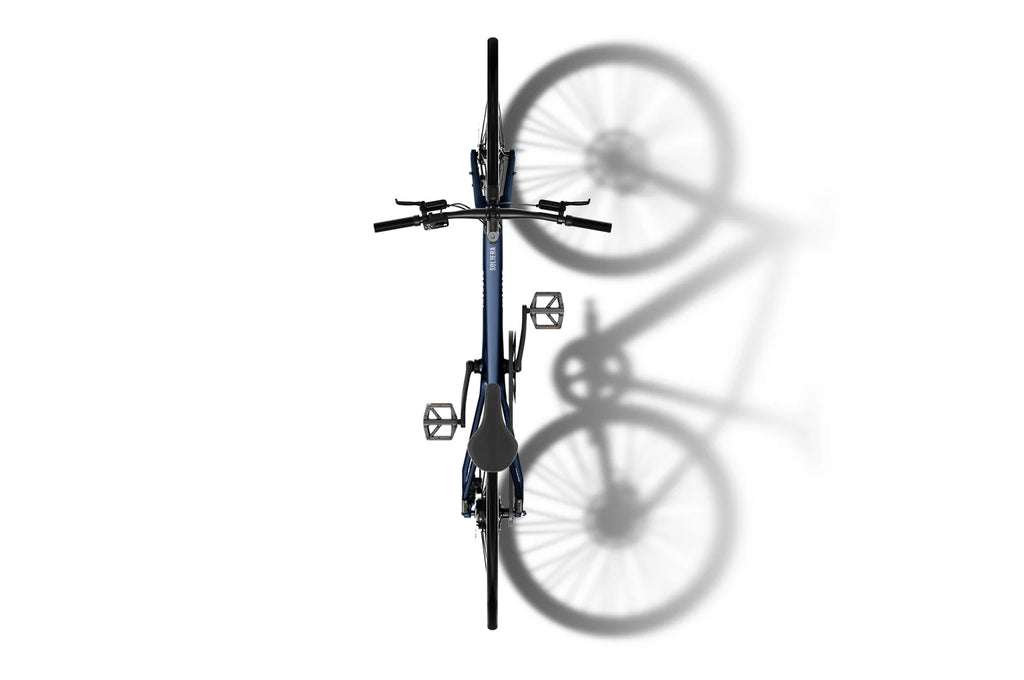

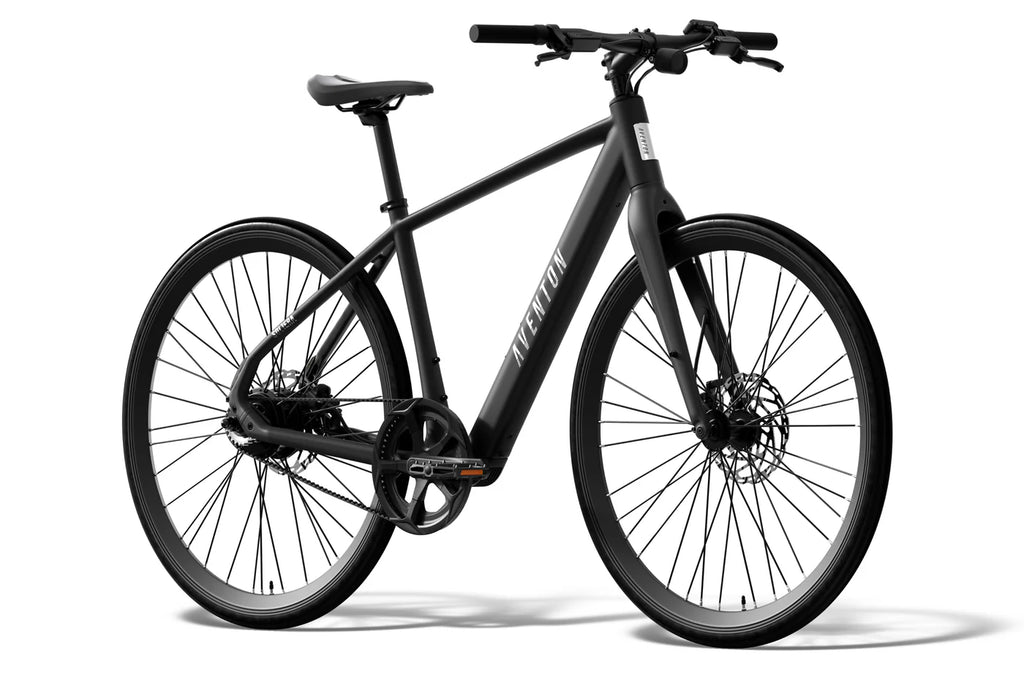

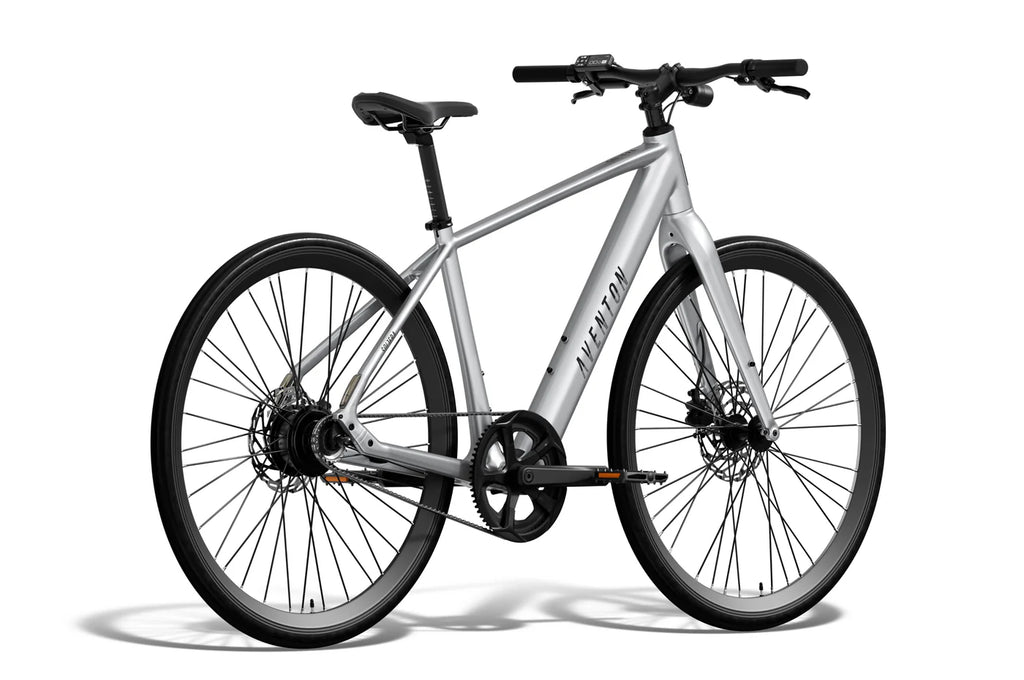

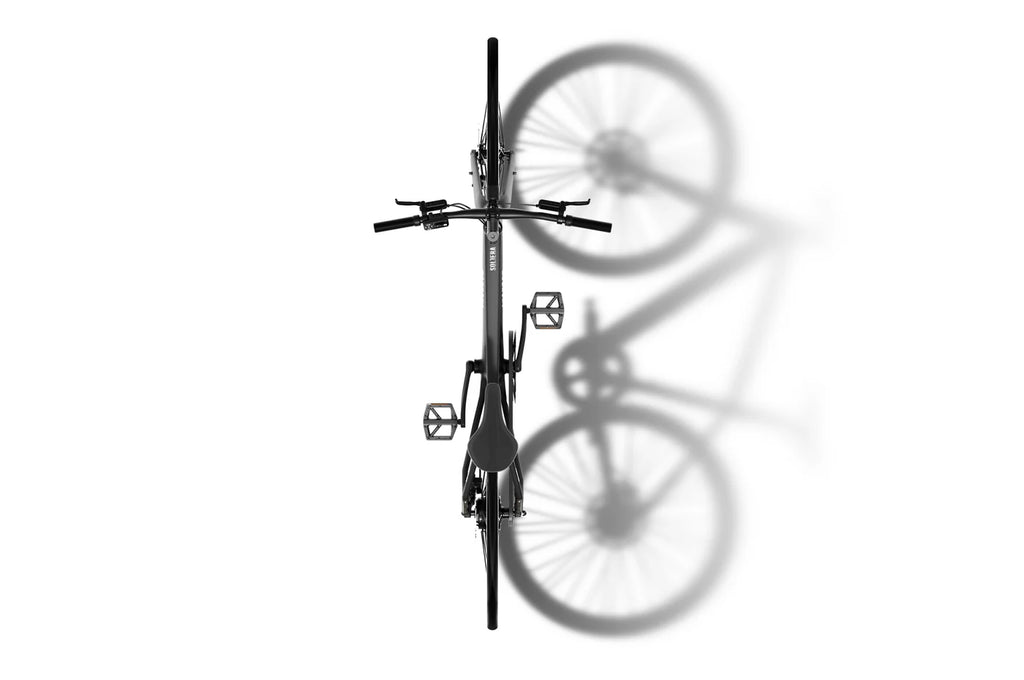

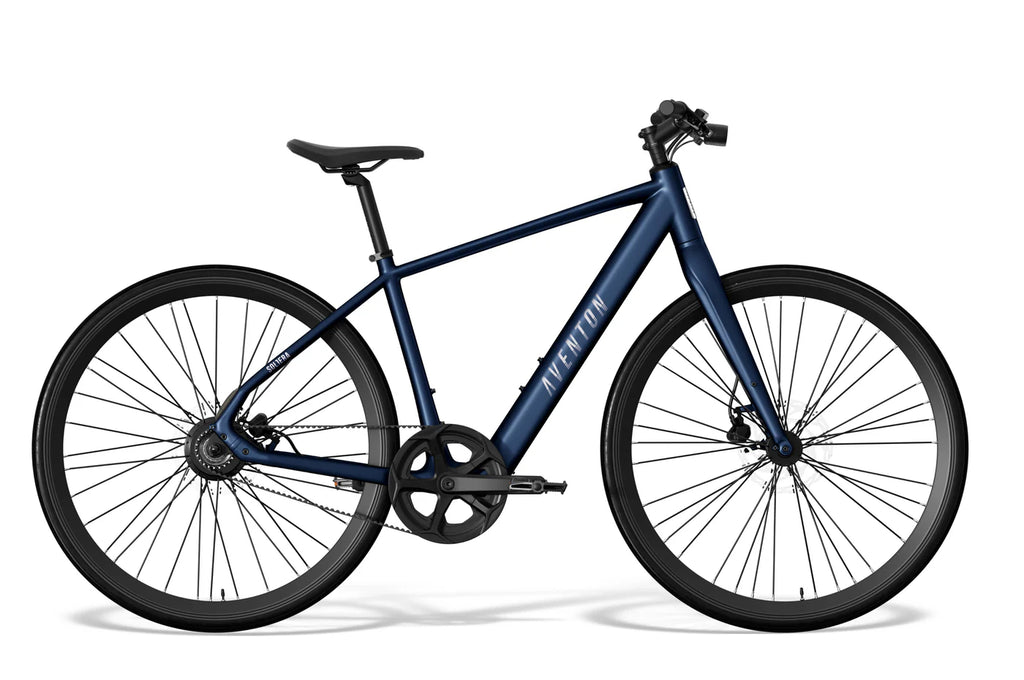

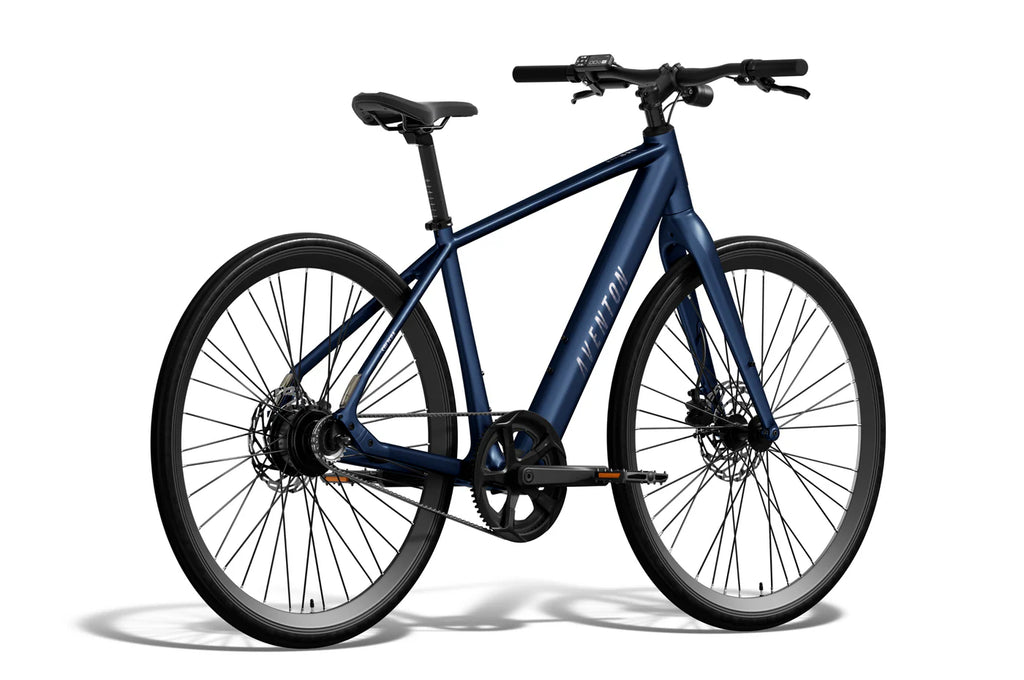

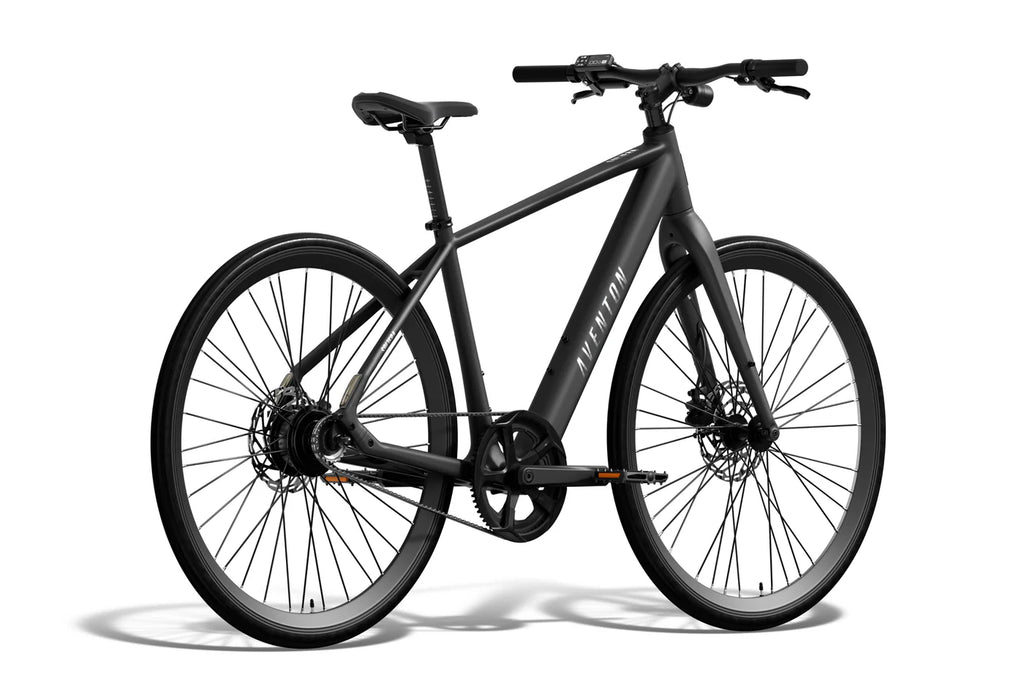

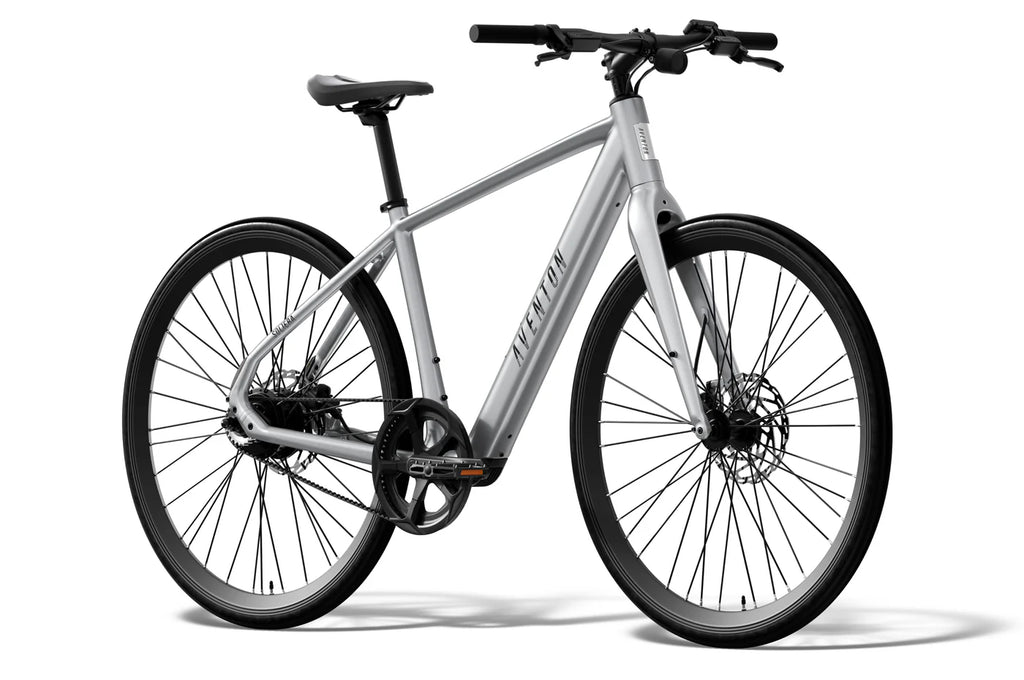

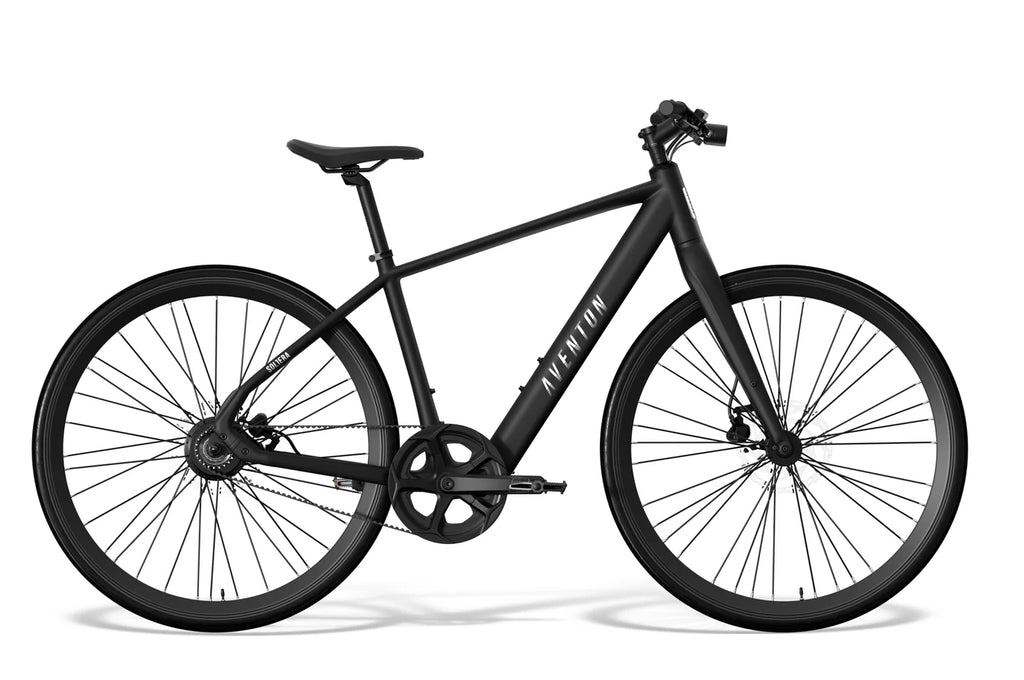

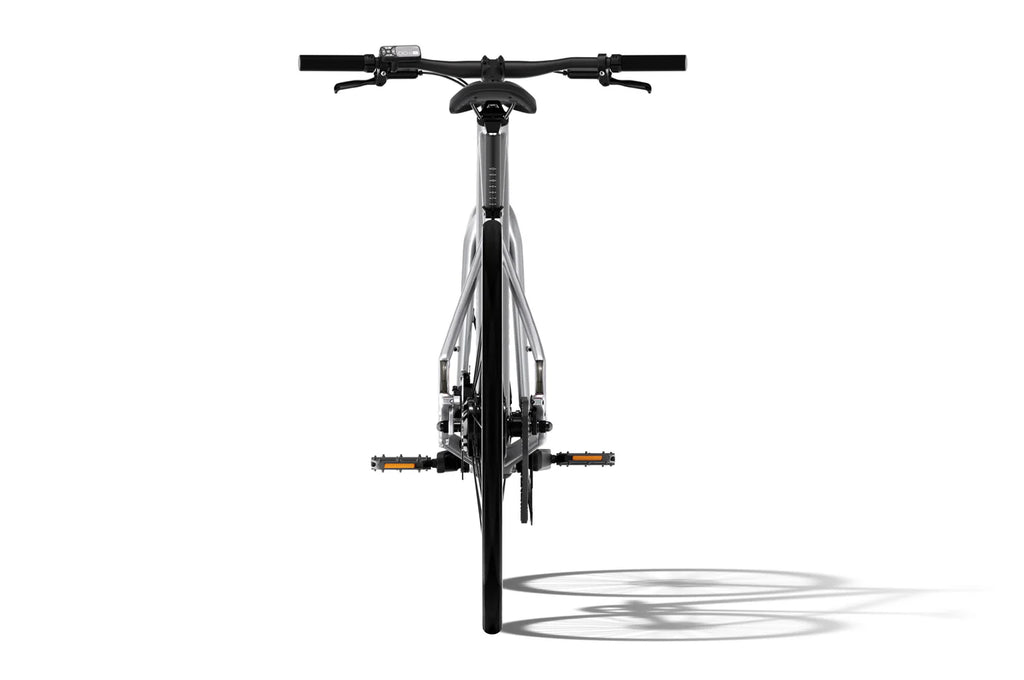

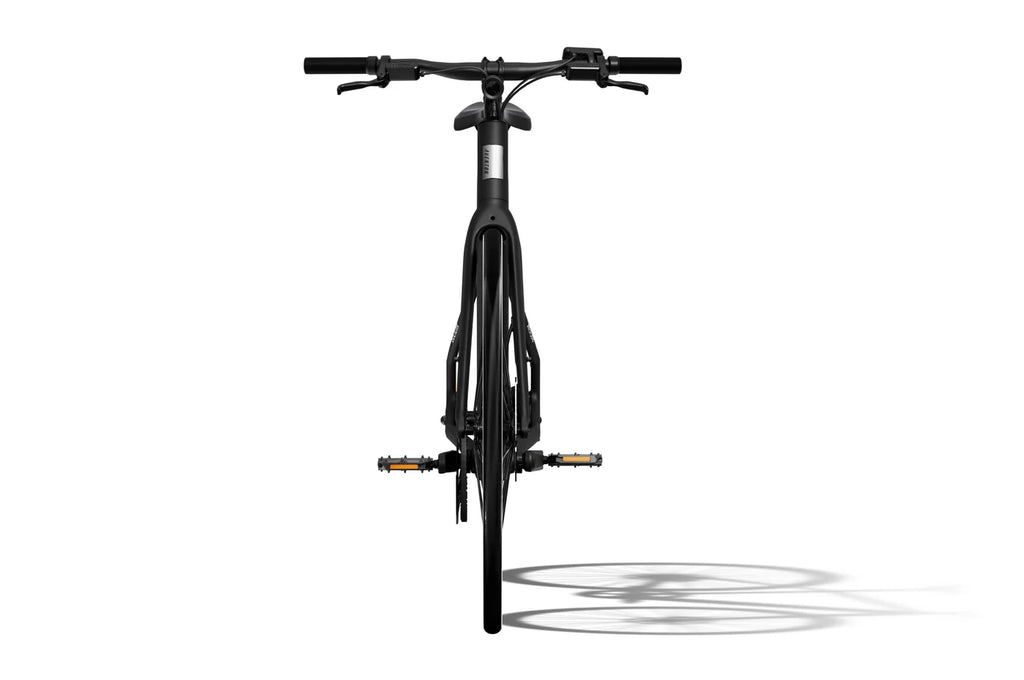

Designed in the spirit of simplicity, the Soltera 3 ADV is built to explore city streets with minimal upkeep. Outfitted with a low-maintenance Gates Carbon Belt Drive, torque sensor, and hydraulic disc brakes, the Soltera 3 ADV blends intuitive performance with practical design. Its single-speed configuration nods to Aventon’s roots, while maintaining a lightweight build made for urban agility. Paired with responsive geometry, the Soltera 3 ADV is your ultimate companion for commutes, quick trips, and urban explorations.
TECHNICAL SPECIFICATIONS
General Info
Model Soltera 3 ADV Ebike
Weight 37lbs
Total Weight Limit 300 lbs
Rider Height S 5'1"-5'5", M 5'5"-5'9", L 5'9"-6'1", XL 5'1"-6'4"
Water Resistance IPX6
Range Up to 70 Miles
Bike Safety Certifications TUV Certified
Battery Safety Certifications TUV Certified
Ideal Use Urban Riding
Frameset
Frame 6061 Double-Butted Aluminum Alloy with Internal Battery
Fork Rigid Aluminum Fork
Rear Spacing 142mm
Fork Spacing 100mm
Frame Style Step-Over
Wheelset
Front Wheel
700c, 32-spoke, Double Wall Aluminum Rim, Thru Axle
Rear Wheel
700c, 36-spoke, Double Wall Aluminum Rim, Nutted Hub Drive Motor
Tires
Kenda K1085 700x38C
Ebike System
Speed Class 1
Motor 36v, 250W
Motor Torque 40Nm
Display Aventon BC147
Battery Integrated Lithium-ion 36.9V, 9.94Ah, 366.8Wh
Battery Weight 4.2lbs
Controller 36v 15A
Throttle N/A
Sensors Double Sided Bottom Bracket Torque Sensor
Charger 36V Output: 42V/ 4A
Charging time from 0% to 100% 3-4 hours
Lights Front and Rear Lights Integrated w/ Turn Signals
Brakes
Front Brake Tektro HD-T3020 Hydraulic Disc Brake (w/o e-cutoff)
Rear Brake Tektro HD-T3020 Hydraulic Disc Brake (w/o e-cutoff)
Front Brake Rotor Tektro 180mm 6 bolt
Rear Brake Rotor Tektro 180mm 6 bolt
Drivetrain
Drivetrain Single Speed, Gates Carbon Belt Drive
Chainring 60T
Hub Flywheel 22T
Belt Gates Carbon Belt Drive 122T CDN
Chainring BCD 130
Crankset 3pc, 165mm crank arm
Bottom Bracket Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm
Pedals 9/16" Composite Platform
Cockpit
Saddle Aventon Saddle
Seatpost Aventon 27.2
Seatpost Clamp 31.8mm
Handlebars Aluminum 31.8mm, 680mm
Stem 31.8mm, 70mm Length, 15°
Grips Aventon Lock on grips
Headset Aventon headset with integrated cable routing
Included Accessories
Kickstand Included in accessory box
