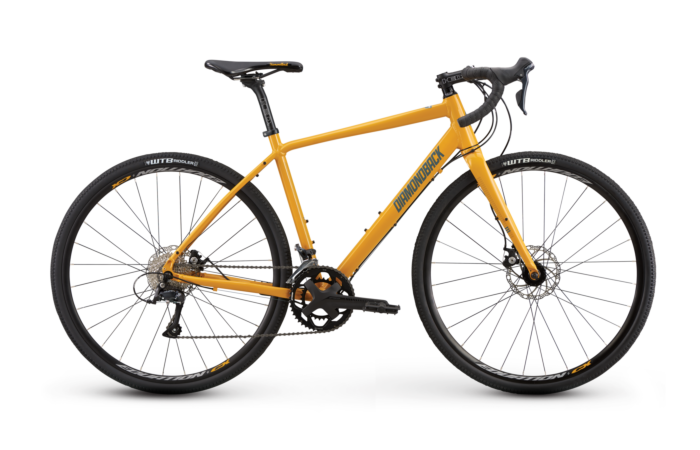

2022 Diamondback Haanjo 3

  • Sale
  • $1,099.99
  • Regular price $1,175.00
Shipping calculated at checkout.

Your next bike shouldn’t limit you — it should open up a world of new possibilities. Enter the Haanjo 3, a bike that can handle any kind of road — paved or not — that calls your name. We equipped the Haanjo 3 with a butted and formed aluminum frame that delivers a great balance of comfort and durability. Our Endurance Geometry is also designed to place you in a more comfortable position that’s perfect for both long rides and rough roads. The Shimano Sora 2×9-speed drivetrain provides ample gearing for those long hauls. and our Gravel Disc alloy fork keeps the steering pinpoint precise without adding extra weight to the mix. Where can you ride the Haanjo 3? Wherever you want. There are no limits with this one.



  • Frame DB Alternative Road, Disc Brake, Endurance Geometry, Relaxed Head Tube Angle, Fully Butted 6061-T6 Aluminum Formed Top Tube, Tapered Headtube, Flat Mount Disc, Replaceable Hanger
  • Fork DB SPF Formed Aluminum Gravel Disc w/1.5" Tapered Steerer Tube
  • Headset FSA No.42B, Sealed Cartridge
  • Cranks FSA Omega Adventure, 46/30T
  • Bottom Bracket FSA Mega Exo
  • Front Derailleur Shimano Sora FD-R3000, 31.8 Band Clamp
  • Rear Derailleur Shimano Sora RD-R3000, 9 Speed, GS
  • Shifter Shimano Sora ST-R3000, 2x9 Speed
  • Cogset Shimano HG400, 9 Speed Cassette, 11-32T
  • Chain KMC Z9, 9 Speed
  • Front Hub 28h Aluminum Quick Release
  • Rear Hub 28h Aluminum Quick Release, Cassette
  • Spokes 14g Stainless Steel
  • Rims Diamondback Equation CX, 28h, Doublewall, Tubeless Compatible Rim, Not Taped
  • Tires WTB Riddler Comp, 700x37c, Non Tubeless Tire
  • Brake Levers Shimano Sora ST-R3000
  • Pedals DB Resin Gravel Platform
  • Handlebar HED, 7050 Aluminum 12 Degree Flare, 31.8mm Bar Bore
  • Grips Diamondback Endurance Gel Tape
  • Stem HED, 6061 Aluminum 3D Forged, +/-7° Rise, 31.8 Bar Bore
  • Seat Diamondback Performance Gravel Road
  • Seatpost HED, 6061 Aluminum 27.2mm
  • Extras Tool Kit, Tubeless Compatible Rims, will need to update to Tubeless Compatible Tires, Tubeless Valves, Tubeless Rim Tape and add Sealant
  • Brakes Tektro Lyra Flat Mount Mechanical Disc, w/160mm Front / 160mm Rear Rotors
